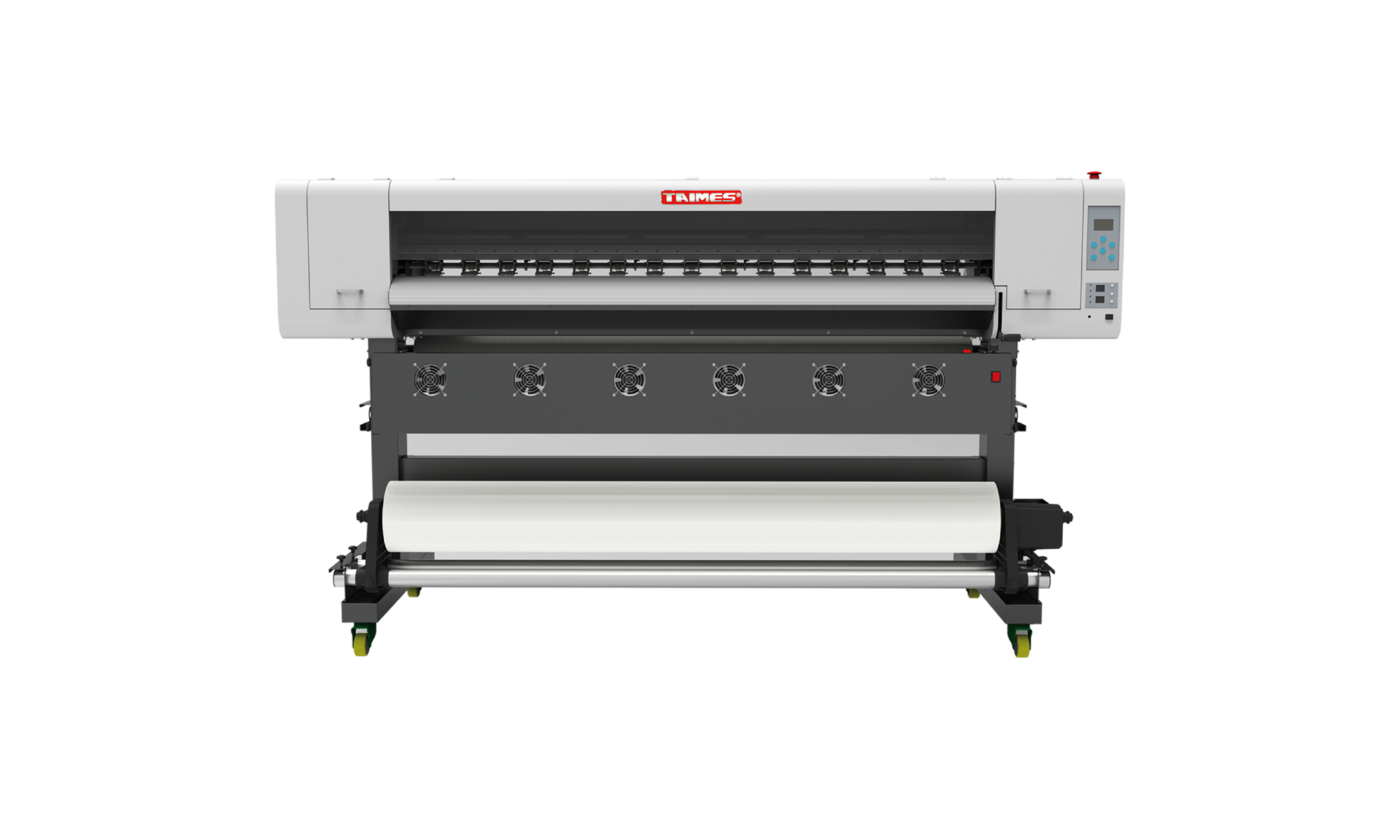

TAIMES T1602
1.6m Standard High-Precision Eco-Solvent Printer
ANTI COLLISION DEVICE
backflow protection
INTELLIGENT FEATHERING
LOW INK ALARM
AUTOMATIC HEIGHT MEASUREMENT
CONTINUOUS PRINTING FUNCTION
NEGA TIVE PRESSURE REGULATION
UV CURING
| Printer | TAIMES T1602 | |||||
| Print Color | C / M / Y / K | |||||
| Print Technology | Industrial Piezoelectric Inkjet | |||||

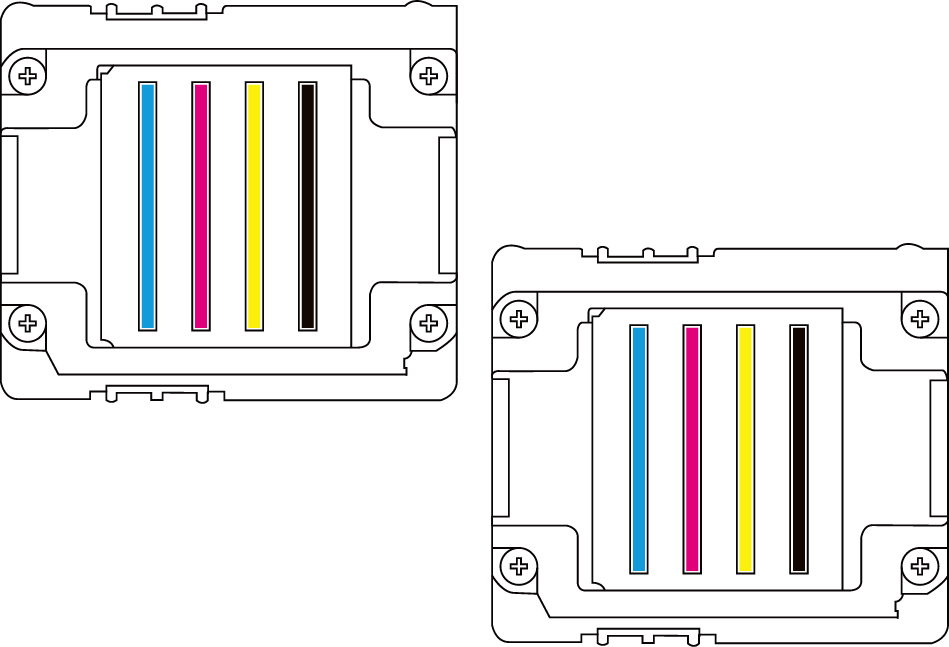

| Printhead | EPSON i3200 ( 1 Head ) | EPSON i3200 ( 2 Heads ) | ||||
| Color Configuration |  |
 |
||||
| 1 Row of Four Colors ( Full Color ) | Two Rows of Four Colors ( Full Color ) | |||||
| Productivity | High Speed | Standard | High-Quality | High Speed | Standard | High-Quality |
| 360×1,800 dpi 3 pass 44 m²/h |
720×1,200 dpi 4 pass 32 m²/h |
720×1,800 dpi 6 pass 22 m²/h |
360×1,800 dpi 3 pass 20 m²/h |
720×1,200 dpi 4 pass 17 m²/h |
720×1,800 dpi 6 pass 10 m²/h |
|
| Max Print Size | Width: 1,600 mm ( 63 '' ) | |||||
| Print Height | 2~8 mm ( Max Printing Weight: ≤ 45 kg/m² ) | |||||
| Media Type | Leather, Lamp Film, Lamp Cloth, PP Paper, Car Sticker, Film, Acid Paper, Copperplate Paper, Oil Painting Cloth, Etc. | |||||
| Ink Type | Eco-solvent Ink, Water Ink | |||||
| Curing System | Intelligent Infrared Drying System | |||||
| RIP Software | Photoprint/ Onyx/ Print Factory/ Colorgate | |||||
| Image Format | TIF / JPG / EPS / PDF | |||||
| Power Supply | > 15A, 2.5KW; AC220V ( ±5% ), 50~60HZ | |||||
| Size / Weight | L2,835 × W800 × H1,355 mm ( L112 × W32 × H53 '' ) ; Net Weight 210 KG ( 463 LB ) | |||||
